PyPortal Titano Weather + Clock (CircuitPython Firmware)

active
embeddedcircuitpythonfirmwareiotuiapis

TL;DR: A real, desk‑running firmware project (not a simulator) that integrates Wi‑Fi APIs, UI layout, and hardware constraints into a stable portrait display.

What it is

A portrait‑mode weather + clock display built in CircuitPython for the Adafruit PyPortal Titano (480×320). It refreshes time/date + weather over Wi‑Fi, renders a clean “at a glance” interface, and uses the onboard light sensor for automatic brightness/dimming.

Why it exists

I wanted a complete embedded project that forced me to handle the real things that break on hardware: networking, refresh timing, UI constraints, storage limits, and readability. The Titano is less documented than smaller PyPortal examples, so this became a “learn by building” reference I could trust.

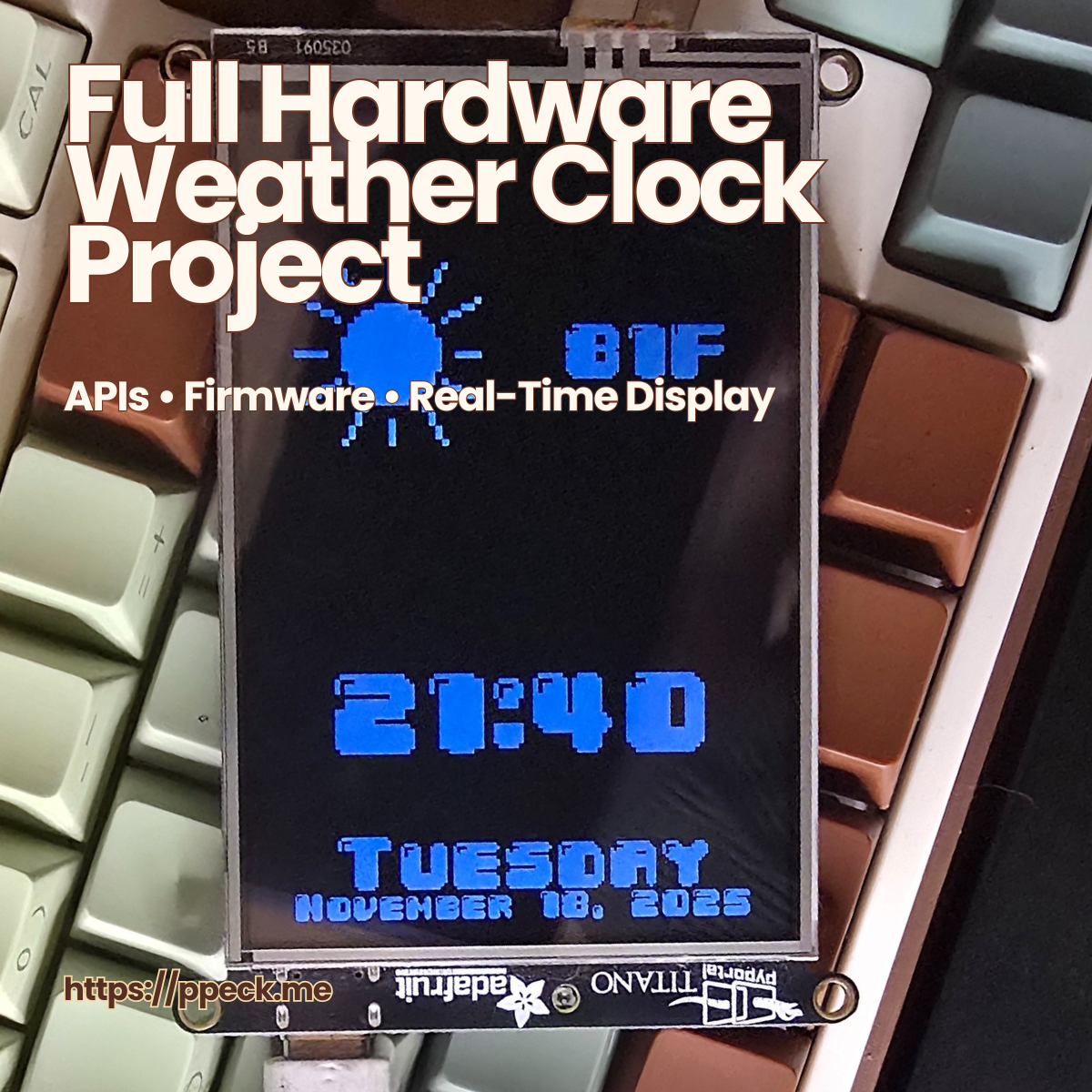

PyPortal Titano Weather + Clock

Core features

  • Large digital clock with smooth refresh
  • Date (weekday + MM/DD)
  • Weather (temperature + icon) via Open‑Meteo API
  • Portrait UI optimized for 480×320
  • Auto brightness via onboard light sensor
  • Graceful fallback when offline (keeps running even if the network doesn’t cooperate)

Architecture (simple on purpose)

  • code.py is the runtime entrypoint on the device (CIRCUITPY drive)
  • secrets.py holds Wi‑Fi + timezone config (never committed with real credentials)
  • bitmap icon sheet + pixel font keep the UI crisp and cheap to render

Setup (fast start)

Prereq: your Titano shows up as the CIRCUITPY drive.

  1. Install CircuitPython for PyPortal Titano
  2. Copy these to the board:
  • code.py
  • weather_icons_32x32_9.bmp
  • fonts/04b30-20.bdf
  1. Create secrets.py on the board:
secrets = {
  "ssid": "YOUR_WIFI_NAME",
  "password": "YOUR_WIFI_PASSWORD",
  "timezone": "Region/City"
}

What this proves

This is a compact but complete example of:

  • Firmware logic + state discipline (the screen must reflect reality)
  • External API integration under constrained conditions
  • UI design for constrained systems (readable, low‑latency, minimal surprise)
  • Debugging on real hardware (timing, network, rendering, storage)
  • Operational reliability mindset: graceful failure beats brittle “perfect paths”

Next iterations (roadmap)

  • Touch settings menu
  • Offline visual indicator
  • Minimal UI mode
  • Theme variations (high contrast / low‑light)
